Recipes & Demos

Worked examples using the included 32-bill dataset (data/). All commands run locally against the pre-extracted data with no API keys unless noted. Semantic search requires OPENAI_API_KEY.

The book/cookbook/cookbook.py script reproduces all CSVs, charts, and JSON shown on this page. See Run All Demos Yourself at the bottom.

Dataset Overview

Subcommittee coverage by fiscal year

The --subcommittee filter requires bills with separate divisions per jurisdiction. FY2025 was funded through H.R. 1968, a full-year continuing resolution that wraps all 12 subcommittees into a single division — so --subcommittee cannot break it apart. Use trace or search --fy 2025 to access FY2025 data by account.

Quick Reference

# Track any federal account across all fiscal years (by FAS code or name search)
congress-approp trace "child nutrition" --dir data

# Budget totals for FY2026
congress-approp summary --dir data --fy 2026

# Find FEMA provisions across all bills covering FY2026
congress-approp search --dir data --keyword "Federal Emergency Management" --fy 2026

# Compare THUD funding FY2024 → FY2026 with inflation adjustment
congress-approp compare --base-fy 2024 --current-fy 2026 --subcommittee thud --dir data --use-authorities --real

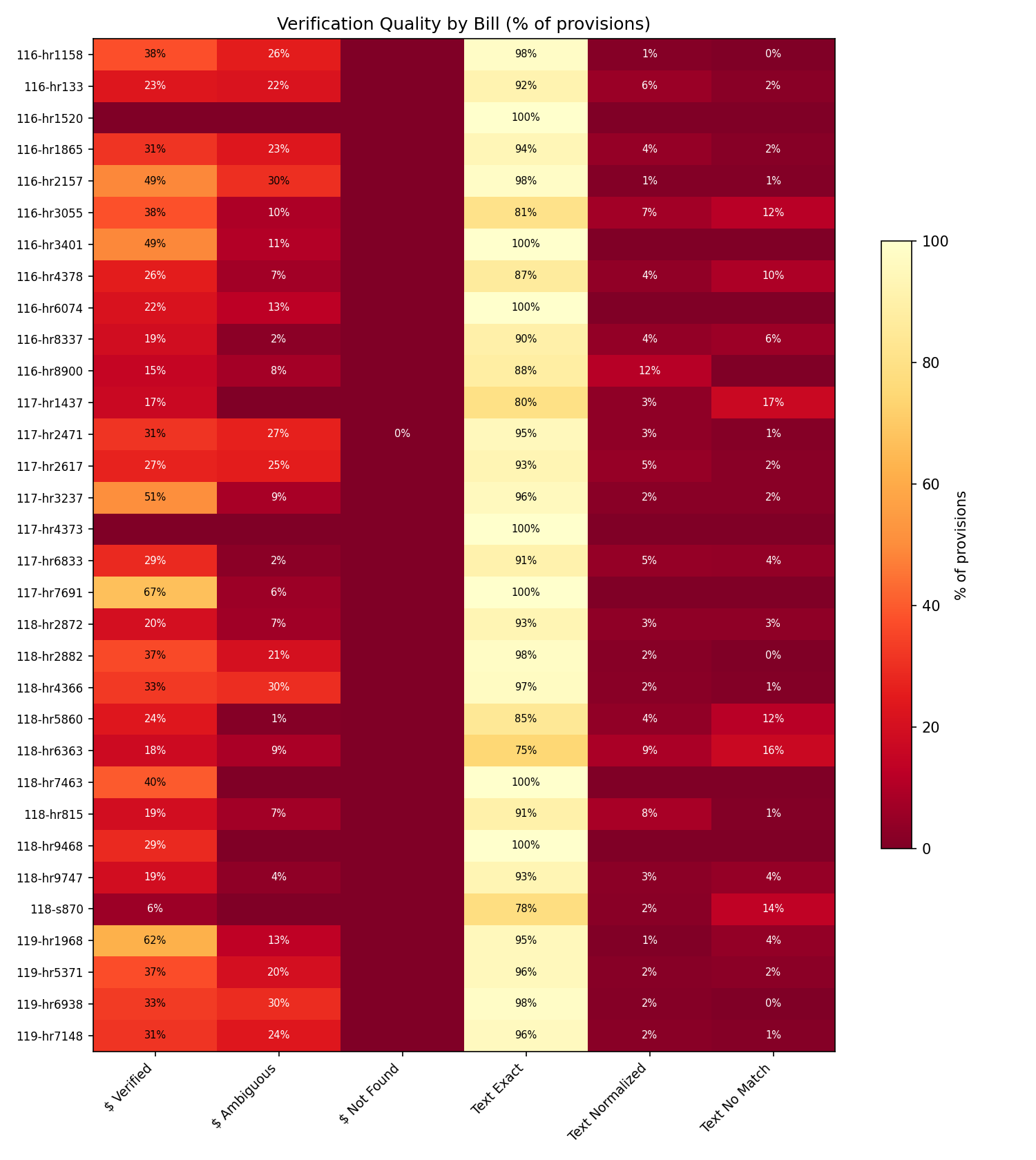

# Verification quality across all 32 bills
congress-approp audit --dir data

Searching and Tracking Accounts

Keyword search

The --keyword flag searches the raw_text field — the verbatim bill language stored with each provision. It is case-insensitive. Combine with --type to filter by provision type, --fy by fiscal year, --agency by department, or --min-dollars / --max-dollars for dollar ranges. All filters are ANDed.

congress-approp search --dir data --keyword "veterans" --type appropriation

┌───┬───────────┬───────────────┬───────────────────────────────────────────────┬─────────────────┬─────────┬─────┐
│ $ ┆ Bill      ┆ Type          ┆ Description / Account                         ┆      Amount ($) ┆ Section ┆ Div │
╞═══╪═══════════╪═══════════════╪═══════════════════════════════════════════════╪═════════════════╪═════════╪═════╡
│ ✓ ┆ H.R. 133  ┆ appropriation ┆ Compensation and Pensions                     ┆   6,110,251,552 ┆         ┆ J   │
│ ✓ ┆ H.R. 133  ┆ appropriation ┆ Readjustment Benefits                         ┆  14,946,618,000 ┆         ┆ J   │
│ ✓ ┆ H.R. 133  ┆ appropriation ┆ General Operating Expenses, Veterans Benefit… ┆   3,180,000,000 ┆         ┆ J   │
│ ...                                                                                                              │

Column reference:

Tracking an account across fiscal years

The trace command follows a single federal account across every bill in the dataset using its Federal Account Symbol (FAS code) — a government-assigned identifier that persists through name changes and reorganizations.

Finding the FAS code by name:

congress-approp trace "child nutrition" --dir data

If the name matches multiple accounts, the tool lists them with their FAS codes. Use the code for the specific account:

congress-approp trace 012-3539 --dir data

TAS 012-3539: Child Nutrition Programs, Food and Nutrition Service, Agriculture
  Agency: Department of Agriculture

┌──────┬──────────────────────┬───────────┬──────────────────────────┐
│ FY   ┆ Budget Authority ($) ┆ Bill(s)   ┆ Account Name(s)          │
╞══════╪══════════════════════╪═══════════╪══════════════════════════╡
│ 2020 ┆       23,615,098,000 ┆ H.R. 1865 ┆ Child Nutrition Programs │
│ 2021 ┆       25,118,440,000 ┆ H.R. 133  ┆ Child Nutrition Programs │
│ 2022 ┆       26,883,922,000 ┆ H.R. 2471 ┆ Child Nutrition Programs │
│ 2023 ┆       28,545,432,000 ┆ H.R. 2617 ┆ Child Nutrition Programs │
│ 2024 ┆       33,266,226,000 ┆ H.R. 4366 ┆ Child Nutrition Programs │
│ 2026 ┆       37,841,674,000 ┆ H.R. 5371 ┆ Child Nutrition Programs │
└──────┴──────────────────────┴───────────┴──────────────────────────┘

  6 fiscal years, 6 bills, 175,270,792,000 total

FY2025 is absent here because H.R. 1968 (the full-year CR) continued FY2024 rates without a separate line item for this account.

Accounts with name changes demonstrate why FAS codes are necessary for cross-bill tracking:

congress-approp trace 070-0400 --dir data

TAS 070-0400: Operations and Support, United States Secret Service, Homeland Security
  Agency: Department of Homeland Security

┌──────┬──────────────────────┬────────────────┬─────────────────────────────────────────────┐
│ FY   ┆ Budget Authority ($) ┆ Bill(s)        ┆ Account Name(s)                             │
╞══════╪══════════════════════╪════════════════╪═════════════════════════════════════════════╡
│ 2020 ┆        2,336,401,000 ┆ H.R. 1158      ┆ United States Secret Service—Operations an… │
│ 2021 ┆        2,373,109,000 ┆ H.R. 133       ┆ United States Secret Service—Operations an… │
│ 2022 ┆        2,554,729,000 ┆ H.R. 2471      ┆ Operations and Support                      │
│ 2023 ┆        2,734,267,000 ┆ H.R. 2617      ┆ Operations and Support                      │
│ 2024 ┆        3,007,982,000 ┆ H.R. 2882      ┆ Operations and Support                      │
│ 2025 ┆          231,000,000 ┆ H.R. 9747 (CR) ┆ United States Secret Service—Operations an… │
└──────┴──────────────────────┴────────────────┴─────────────────────────────────────────────┘

  Name variants across bills:
    "Operations and Support" (117-hr2471, 117-hr2617, 118-hr2882) [prefix]
    "United States Secret Service—Operations and Sup…" (116-hr1158, 116-hr133, 118-hr9747) [canonical]

  6 fiscal years, 6 bills, 13,237,488,000 total

The account was renamed between the 116th and 117th Congress — the “United States Secret Service—” prefix was dropped. FAS code 070-0400 unifies both names. The FY2025 row shows $231M from H.R. 9747 (a CR supplement), not the full-year level.

Semantic search

When the official program name is unknown, semantic search matches provisions by meaning rather than keywords. Requires OPENAI_API_KEY (one API call per query, ~100ms).

export OPENAI_API_KEY="your-key"
congress-approp search --dir data --semantic "school lunch programs for kids" --top 3

┌──────┬───────────────────┬───────────────┬──────────────────────────┬────────────────┐
│ Sim  ┆ Bill              ┆ Type          ┆ Description / Account    ┆     Amount ($) │
╞══════╪═══════════════════╪═══════════════╪══════════════════════════╪════════════════╡
│ 0.52 ┆ H.R. 1865 (116th) ┆ appropriation ┆ Child Nutrition Programs ┆ 23,615,098,000 │
│ 0.51 ┆ H.R. 4366 (118th) ┆ appropriation ┆ Child Nutrition Programs ┆ 33,266,226,000 │
│ 0.51 ┆ H.R. 2471 (117th) ┆ appropriation ┆ Child Nutrition Programs ┆ 26,883,922,000 │
└──────┴───────────────────┴───────────────┴──────────────────────────┴────────────────┘

“school lunch programs for kids” shares no keywords with “Child Nutrition Programs”, but semantic search matches them by meaning. The Sim column is cosine similarity between the query and provision embeddings:

Scores reflect the full provision text (account name + agency + raw bill language), not just the account name, which is why good matches are often in the 0.45–0.55 range rather than near 1.0.

Additional examples (tested against the dataset):

Comparing Across Fiscal Years

Year-over-year comparison with inflation adjustment

congress-approp compare --base-fy 2024 --current-fy 2026 --subcommittee thud \
    --dir data --use-authorities --real

20 orphan(s) rescued via TAS authority matching
Comparing: H.R. 4366 (118th)  →  H.R. 7148 (119th)

┌─────────────────────────────────────┬──────────────────────┬────────────────┬────────────────┬─────────────────┬─────────┬───────────┬───┬──────────┐
│ Account                             ┆ Agency               ┆       Base ($) ┆    Current ($) ┆       Delta ($) ┆     Δ % ┆ Real Δ %* ┆   ┆ Status   │
╞═════════════════════════════════════╪══════════════════════╪════════════════╪════════════════╪═════════════════╪═════════╪═══════════╪═══╪══════════╡
│ Tenant-Based Rental Assistance      ┆ Department of Housi… ┆ 32,386,831,000 ┆ 38,438,557,000 ┆  +6,051,726,000 ┆  +18.7% ┆    +13.8% ┆ ▲ ┆ changed  │
│ Federal-Aid Highways                ┆ Federal Highway Adm… ┆ 60,834,782,888 ┆ 63,396,105,821 ┆  +2,561,322,933 ┆   +4.2% ┆     -0.1% ┆ ▼ ┆ changed  │
│ Operations                          ┆ Federal Aviation Ad… ┆ 12,729,627,000 ┆ 13,710,000,000 ┆    +980,373,000 ┆   +7.7% ┆     +3.2% ┆ ▲ ┆ changed  │
│ Facilities and Equipment            ┆ Federal Aviation Ad… ┆  3,191,250,000 ┆  4,000,000,000 ┆    +808,750,000 ┆  +25.3% ┆    +20.1% ┆ ▲ ┆ changed  │
│ Capital Investment Grants           ┆ Federal Transit Adm… ┆  2,205,000,000 ┆  1,700,000,000 ┆    -505,000,000 ┆  -22.9% ┆    -26.1% ┆ ▼ ┆ changed  │
│ Public Housing Fund                 ┆ Department of Housi… ┆  8,810,784,000 ┆  8,319,393,000 ┆    -491,391,000 ┆   -5.6% ┆     -9.5% ┆ ▼ ┆ changed  │
│ ...                                 ┆                      ┆                ┆                ┆                 ┆         ┆           ┆   ┆          │

Column reference:

The Federal-Aid Highways row illustrates why inflation adjustment matters: nominal +4.2%, but real -0.1%. The nominal increase does not keep pace with inflation.

The --real flag works on any compare command — any subcommittee, any fiscal year pair. No API key needed.

The “20 orphan(s) rescued via TAS authority matching” message indicates 20 accounts that would have appeared unmatched (different names between FY2024 and FY2026) were paired using their FAS codes.

Subcommittee budget authority across fiscal years

Individual subcommittee totals can be retrieved per fiscal year using summary --fy Y --subcommittee S. The book/cookbook/cookbook.py script runs all combinations; the resulting table:

FY2025 is omitted for individual subcommittees because it was funded through a full-year CR with all jurisdictions under one division — see the coverage note above.

All values are budget authority. These include mandatory spending programs that appear as appropriation lines (e.g., SNAP under Agriculture, Medicaid under Labor-HHS). The MilCon-VA figure ($495B for FY2026) includes $394B in advance appropriations — see the next section.

Advance vs. current-year appropriations

congress-approp summary --dir data --fy 2026 --subcommittee milcon-va --show-advance

┌───────────────────┬──────┬────────────────┬────────────┬─────────────────┬─────────────────┬─────────────────┬─────────────────┬─────────────────┐
│ Bill              ┆ FYs  ┆ Classification ┆ Provisions ┆     Current ($) ┆     Advance ($) ┆    Total BA ($) ┆ Rescissions ($) ┆      Net BA ($) │
╞═══════════════════╪══════╪════════════════╪════════════╪═════════════════╪═════════════════╪═════════════════╪═════════════════╪═════════════════╡
│ H.R. 5371 (119th) ┆ 2026 ┆ Minibus        ┆        263 ┆ 101,839,976,450 ┆ 393,592,053,000 ┆ 495,432,029,450 ┆  16,499,000,000 ┆ 478,933,029,450 │
│ TOTAL             ┆      ┆                ┆        263 ┆ 101,839,976,450 ┆ 393,592,053,000 ┆ 495,432,029,450 ┆  16,499,000,000 ┆ 478,933,029,450 │
└───────────────────┴──────┴────────────────┴────────────┴─────────────────┴─────────────────┴─────────────────┴─────────────────┴─────────────────┘

79.4% of FY2026 MilCon-VA budget authority ($394B of $495B) is advance appropriations for FY2027. Only $102B is current-year spending. Without --show-advance, the total combines both, which can distort year-over-year comparisons by hundreds of billions of dollars.

The classification uses bill_meta.json generated by enrich (run once, no API key). The algorithm compares each provision’s availability dates against the bill’s fiscal year.

CR substitutions — what the continuing resolution changed

Continuing resolutions fund the government at prior-year rates, except for specific anomalies (CR substitutions) where Congress sets a different level.

congress-approp search --dir data/118-hr5860 --type cr_substitution

┌───┬───────────┬──────────────────────────────────────────┬───────────────┬───────────────┬──────────────┬──────────┬─────┐
│ $ ┆ Bill      ┆ Account                                  ┆       New ($) ┆       Old ($) ┆    Delta ($) ┆ Section  ┆ Div │
╞═══╪═══════════╪══════════════════════════════════════════╪═══════════════╪═══════════════╪══════════════╪══════════╪═════╡
│ ✓ ┆ H.R. 5860 ┆ Rural Housing Service—Rural Community…   ┆    25,300,000 ┆    75,300,000 ┆  -50,000,000 ┆ SEC. 101 ┆ A   │
│ ✓ ┆ H.R. 5860 ┆ Rural Utilities Service—Rural Water a…   ┆    60,000,000 ┆   325,000,000 ┆ -265,000,000 ┆ SEC. 101 ┆ A   │
│ ✓ ┆ H.R. 5860 ┆ National Science Foundation—STEM Educ…   ┆    92,000,000 ┆   217,000,000 ┆ -125,000,000 ┆ SEC. 101 ┆ A   │
│ ✓ ┆ H.R. 5860 ┆ National Science Foundation—Research …   ┆   608,162,000 ┆   818,162,000 ┆ -210,000,000 ┆ SEC. 101 ┆ A   │
│ ✓ ┆ H.R. 5860 ┆ Office of Personnel Management—Salari…   ┆   219,076,000 ┆   190,784,000 ┆  +28,292,000 ┆ SEC. 126 ┆ A   │
│ ✓ ┆ H.R. 5860 ┆ Department of Transportation—Federal …   ┆   617,000,000 ┆   570,000,000 ┆  +47,000,000 ┆ SEC. 137 ┆ A   │
│ ...                                                                                                                      │
└───┴───────────┴──────────────────────────────────────────┴───────────────┴───────────────┴──────────────┴──────────┴─────┘
13 provisions found

The cr_substitution table shows New (the CR level), Old (the prior-year rate being replaced), and Delta (the difference). Negative delta = funding cut below the prior-year rate. The full dataset contains 123 CR substitutions across all bills.

To see all CR substitutions: congress-approp search --dir data --type cr_substitution

Working with the Data Programmatically

Loading extraction.json in Python

Each bill’s provisions are in data/{bill_dir}/extraction.json:

import json
from collections import Counter

ext = json.load(open('data/119-hr7148/extraction.json'))
provisions = ext['provisions']

# Count by type
type_counts = Counter(p['provision_type'] for p in provisions)
for ptype, count in type_counts.most_common():
    print(f"  {ptype}: {count}")

  appropriation: 1201
  limitation: 553
  rider: 325
  directive: 285
  transfer_authority: 107
  rescission: 98
  mandatory_spending_extension: 82
  other: 63
  directed_spending: 59
  continuing_resolution_baseline: 1

Field access patterns:

p = provisions[0]
p['provision_type']       # → 'appropriation'
p['account_name']         # → 'Military Personnel, Army'
p['agency']               # → 'Department of Defense'

# Dollar amount (defensive — some fields can be null)
amt = p.get('amount') or {}
value = (amt.get('value') or {}).get('dollars', 0) or 0
# → 54538366000

amt['semantics']          # → 'new_budget_authority'
#   'new_budget_authority' — counts toward budget totals
#   'rescission'           — cancellation of prior funds
#   'transfer_ceiling'     — max transfer amount (not new spending)
#   'limitation'           — spending cap
#   'reference_amount'     — sub-allocation or contextual (not counted)
#   'mandatory_spending'   — mandatory program in the appropriation text

p['detail_level']         # → 'top_level'
#   'top_level'       — main account appropriation (counts toward totals)
#   'line_item'       — numbered item within a section (counts)
#   'sub_allocation'  — "of which" breakdown (does NOT count)
#   'proviso_amount'  — amount in a "Provided, That" clause (does NOT count)

p['raw_text'][:80]        # → verbatim bill language
p['confidence']           # → 0.97 (LLM self-assessed; not calibrated above 0.90)
p['section']              # → '' (empty if no section number)
p['division']             # → 'A'

# Source span — exact byte position in the enrolled bill
span = p.get('source_span') or {}
span['start']             # → UTF-8 byte offset in the source text file
span['end']               # → exclusive end byte
span['file']              # → 'BILLS-119hr7148enr.txt'
span['verified']          # → True (source_bytes[start:end] == raw_text)

Filtering to top-level budget authority provisions (the ones counted in totals):

for p in provisions:
    if p.get('provision_type') != 'appropriation':
        continue
    amt = p.get('amount') or {}
    if amt.get('semantics') != 'new_budget_authority':
        continue
    dl = p.get('detail_level', '')
    if dl in ('sub_allocation', 'proviso_amount'):
        continue
    dollars = (amt.get('value') or {}).get('dollars', 0) or 0
    print(f"{p['account_name'][:50]:50s}  ${dollars:>15,}")

Building a pandas DataFrame from authorities.json

data/authorities.json contains the cross-bill account registry — 1,051 accounts with provisions, name variants, and rename events. To flatten it into a DataFrame:

import json
import pandas as pd

auth = json.load(open('data/authorities.json'))

rows = []
for a in auth['authorities']:
    for prov in a.get('provisions', []):
        for fy in prov.get('fiscal_years', []):
            rows.append({
                'fas_code': a['fas_code'],
                'agency_code': a['agency_code'],
                'agency': a['agency_name'],
                'title': a['fas_title'],
                'fiscal_year': fy,
                'dollars': prov.get('dollars', 0) or 0,
                'bill': prov['bill_identifier'],
                'bill_dir': prov['bill_dir'],
                'confidence': prov['confidence'],
                'method': prov['method'],
            })

df = pd.DataFrame(rows)

Key fields:

Common operations:

# Budget authority by fiscal year
df.groupby('fiscal_year')['dollars'].sum().sort_index()

# Top 10 agencies
df.groupby('agency')['dollars'].sum().sort_values(ascending=False).head(10)

# Pivot: one row per account, one column per FY
df.pivot_table(values='dollars', index=['fas_code', 'title'],
               columns='fiscal_year', aggfunc='sum', fill_value=0)

# Export
df.to_csv('budget_timeline.csv', index=False)

CLI CSV export and analysis

Export provisions from the CLI, then load in Python or a spreadsheet:

congress-approp search --dir data --type appropriation --fy 2026 --format csv > fy2026_approps.csv

import pandas as pd

df = pd.read_csv('fy2026_approps.csv')

CSV field reference:

Do not sum the dollars column directly. Filter to semantics == 'new_budget_authority' and exclude detail_level in ('sub_allocation', 'proviso_amount') to avoid double-counting. Or use congress-approp summary which handles this automatically.

ba = df[(df['semantics'] == 'new_budget_authority') &
        (~df['detail_level'].isin(['sub_allocation', 'proviso_amount']))]
print(f"FY2026 BA provisions: {len(ba)}")
print(f"Total: ${ba['dollars'].sum():,.0f}")

Other export formats: --format json (array), --format jsonl (one object per line for streaming), --format csv.

jq one-liners:

# Top 5 rescissions by dollar amount
congress-approp search --dir data --type rescission --format json | \
  jq 'sort_by(-.dollars) | .[0:5] | .[] | {bill, account_name, dollars}'

# Count provisions by type for FY2026
congress-approp search --dir data --fy 2026 --format json | \
  jq 'group_by(.provision_type) | map({type: .[0].provision_type, count: length}) | sort_by(-.count)'

Source span verification

Every provision carries a source_span with exact byte offsets into the enrolled bill text. To independently verify a provision:

import json

ext = json.load(open('data/118-hr9468/extraction.json'))
p = ext['provisions'][0]
span = p['source_span']

source_bytes = open(f"data/118-hr9468/{span['file']}", 'rb').read()
actual = source_bytes[span['start']:span['end']].decode('utf-8')

assert actual == p['raw_text']  # True

Account:  Compensation and Pensions
Dollars:  $2,285,513,000
Span:     bytes 371..482 in BILLS-118hr9468enr.txt
Match:    True

start and end are UTF-8 byte offsets. In Python, use open(path, 'rb').read()[start:end].decode('utf-8') — not character-based indexing.

To verify all provisions across multiple bills:

import json, os

for bill_dir in ['118-hr9468', '119-hr7148', '119-hr5371']:
    ext = json.load(open(f'data/{bill_dir}/extraction.json'))
    for i, p in enumerate(ext['provisions']):
        span = p.get('source_span') or {}
        if not span.get('file'):
            continue
        source = open(f'data/{bill_dir}/{span["file"]}', 'rb').read()
        actual = source[span['start']:span['end']].decode('utf-8')
        assert actual == p['raw_text'], f'{bill_dir} provision {i}: MISMATCH'
    print(f'{bill_dir}: {len(ext["provisions"])} provisions verified')

Visualizations

Generated by book/cookbook/cookbook.py. The images below are included in the repository; run the script to regenerate from the current data.

FY2026 Interactive Treemap

FY2026 budget authority ($5.6 trillion across 1,076 accounts) organized by jurisdiction → agency → account. The file is a self-contained HTML page — open it in your browser.

Hierarchy: jurisdiction (subcommittee) → agency (department) → account. Click to zoom. Color intensity encodes dollar amount.

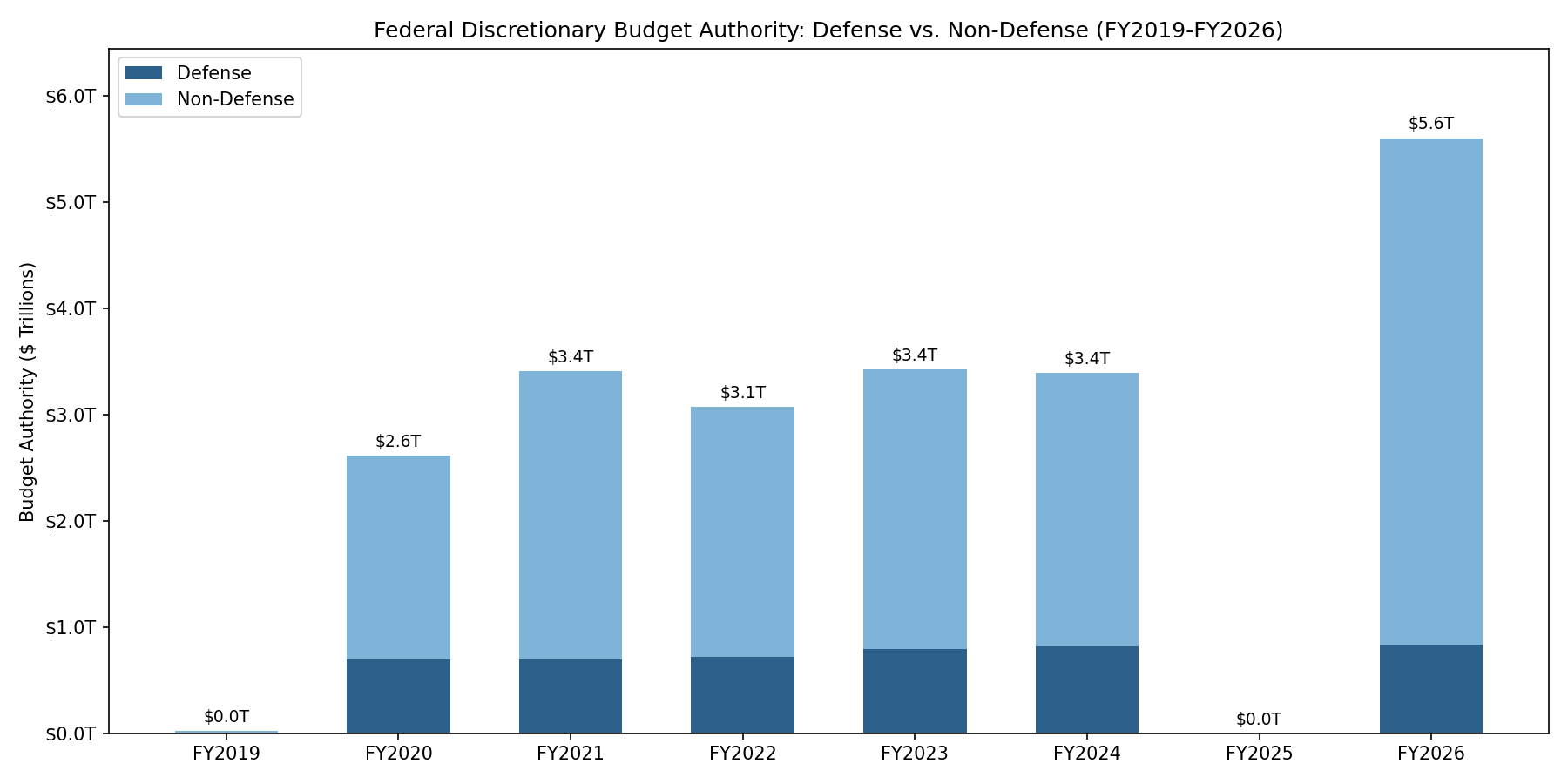

Defense vs. Non-Defense Spending Trend

Dark blue = Defense. Light blue = all other subcommittees. Defense grew from $693B to $836B (+21%) over this period. Non-defense growth is primarily driven by mandatory spending programs (Medicaid, SNAP, VA Compensation) that appear as appropriation lines in the bill text. See Why the Numbers Might Not Match Headlines.

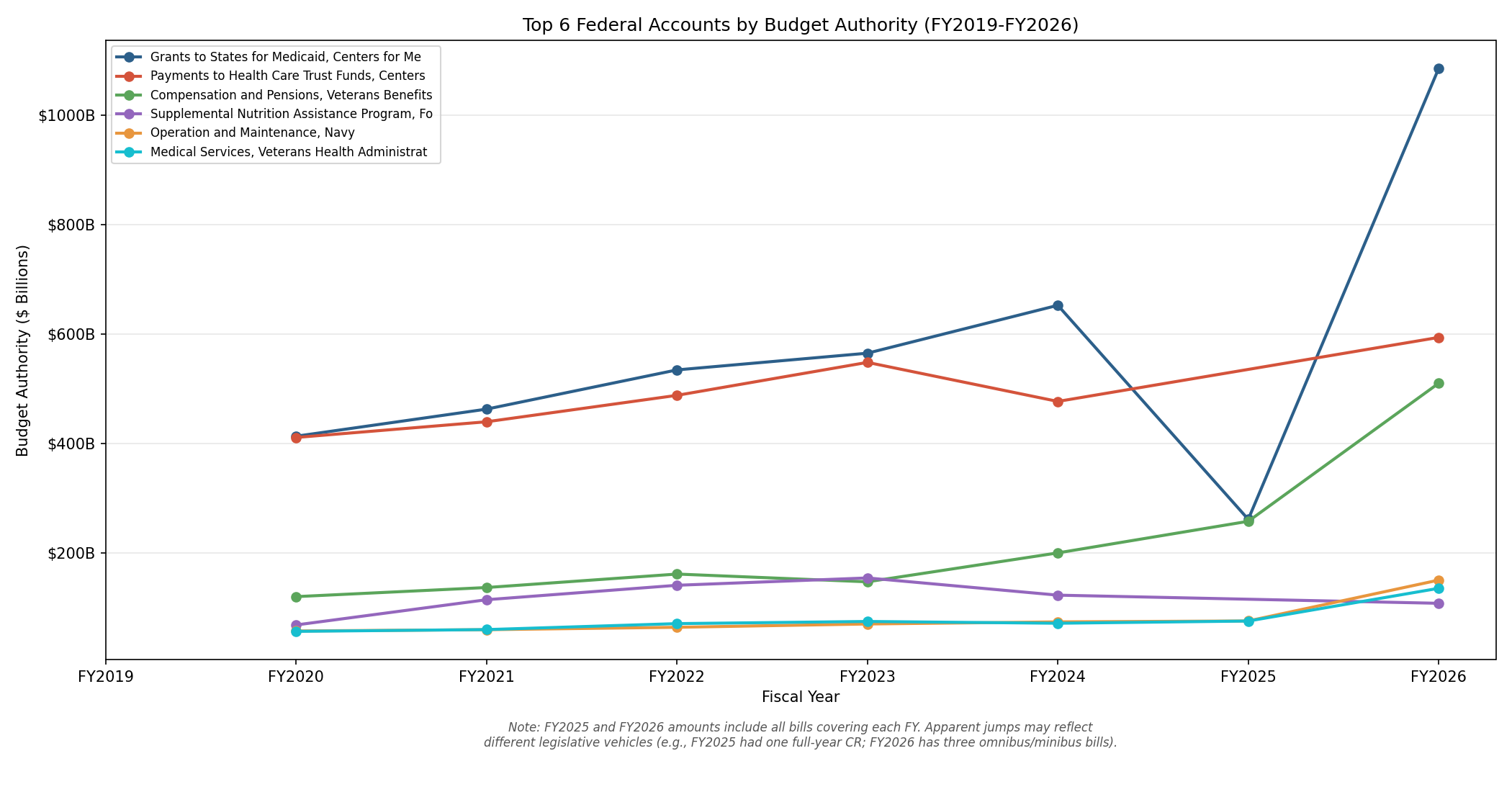

Top 6 Federal Accounts by Budget Authority

Each line is one Treasury Account Symbol (FAS code). The top accounts are dominated by mandatory programs that appear as appropriation line items: Medicaid, Health Care Trust Funds, and VA Compensation & Pensions.

Note on FY2025→FY2026 jumps: Some accounts show sharp increases between FY2025 and FY2026 (e.g., Medicaid $261B → $1,086B). This is because FY2025 was covered by a single full-year CR while FY2026 has multiple omnibus/minibus bills — the amounts are correct per bill, but the visual jump reflects different legislative coverage.

Verification Quality Heatmap

Each row is a bill; each column is a verification metric. Color intensity shows the percentage of provisions meeting that criterion.

Bills with low $ Verified percentages (e.g., CRs) are expected — most CR provisions do not carry dollar amounts.

Run All Demos Yourself

book/cookbook/cookbook.py runs 24 demos including everything above plus TAS resolution quality per bill, account rename events, directed spending analysis, advance appropriation breakdown, and more.

Setup

source .venv/bin/activate
pip install -r book/cookbook/requirements.txt

Run

python book/cookbook/cookbook.py

For semantic search demos (optional):

export OPENAI_API_KEY="your-key"
python book/cookbook/cookbook.py

Output

All files go to tmp/demo_output/:
